What Are Convolutional Neural Networks A Guide for 2026

Ever wondered how your phone instantly sorts your photos or how a self-driving car "sees" the road? The technology behind it is a specialized form of AI known as a Convolutional Neural Network (CNN). In simple terms, a CNN is a type of deep learning model that’s been specifically built to process and understand visual information, much like our own brain's visual cortex.

Decoding Our Visual World

Think about how you’d teach a child to recognize a dog. You wouldn't describe it as a collection of pixel values. Instead, you'd point out its defining features: floppy ears, a wagging tail, four legs, and a wet nose. CNNs learn in a surprisingly similar way. They don't process an image all at once; they methodically break it down into a hierarchy of patterns, starting simple and building up to the complex.

This step-by-step feature detection is what makes CNNs so effective. The initial layers of the network are on the lookout for the most basic elements.

Simple edges and corners

Patches of specific colors

Gradients and basic textures

As the information moves deeper into the network, these simple features are combined to form more complex objects. A few lines and curves might be recognized as an eye, while another cluster of patterns could be identified as a paw. Finally, the network's last layers piece everything together to recognize the entire object—the dog. This progressive assembly line is the very essence of how a CNN works.

CNNs Versus Traditional Networks

So, what makes a CNN different from a standard neural network? It all comes down to how they handle spatial information. A traditional network takes an image and flattens it into a single, long vector of pixels, completely scrambling the original structure. A CNN, on the other hand, is built to preserve the image's grid-like arrangement of pixels.

This preservation of spatial relationships is the secret sauce. A CNN understands that pixels located near each other are related, forming meaningful patterns. A traditional network loses this context entirely.

This simple but critical difference is why CNNs have become the engine of modern computer vision. They power everything from advanced medical imaging analysis to the sophisticated AI-generated content found on platforms like NextPorn.

To make this crystal clear, let's break down the key differences side-by-side.

CNNs vs Traditional Neural Networks at a Glance

Feature	Traditional Neural Network (MLP)	Convolutional Neural Network (CNN)
Input Data Structure	Flattens images into a 1D vector, losing spatial information.	Preserves the 2D or 3D structure of the image.
Key Operation	Full connections between layers (every neuron is connected to every neuron in the next layer).	Convolution operations with filters (kernels) that scan the image.
Parameter Sharing	Each connection has a unique weight, leading to a massive number of parameters.	The same filter is used across the entire image, drastically reducing parameters.
Feature Detection	Learns global patterns but struggles with local features and their locations.	Excellent at detecting local features (edges, textures) and is invariant to their position.
Best Use Case	Tabular data, classification tasks where spatial relationships don't matter.	Image recognition, video analysis, computer vision tasks.

In short, while a traditional network sees a jumbled list of pixels, a CNN sees the picture. This ability to maintain and learn from an image's structure is what gives it such a profound advantage in any visual task.

The Building Blocks: How a CNN Actually Sees

So, how does a convolutional neural network (CNN) actually see an image? To really get it, we need to pop the hood and look at the core components. Think of a CNN not as a single entity, but as a team of highly specialized inspectors, each with a very specific job.

Everything begins with the most important operation of all: the convolution. This is the absolute heart of a CNN.

Picture this: you're sliding a small magnifying glass over an image, pixel by pixel. In a CNN, this "magnifying glass" is a small grid of numbers called a kernel or a filter. Each kernel is built to find one, and only one, tiny feature. For instance, you might have one kernel that's an expert at finding vertical lines, another that's tuned to a specific shade of blue, and a third that only reacts to a certain type of curve.

As this kernel moves across the image, it does a bit of math with the pixels it's currently looking at. The result is a single number that basically says, "I found the feature I was looking for, and here's how strongly I saw it." After the kernel has scanned the entire image, you're left with a new grid of these numbers, which we call a feature map. It’s literally a map showing where the kernel found its target.

Controlling the Scan: Stride and Padding

Of course, we need a way to manage this scanning process. That's where two key settings come in: stride and padding.

Stride dictates how many pixels the kernel "jumps" as it moves. A stride of 1 means it shifts over just one pixel at a time for a very meticulous, overlapping scan. A larger stride of 2 means it skips two pixels with each move, covering the image much faster but sacrificing some fine-grained detail. It's a trade-off between speed and thoroughness.

Padding is a clever trick to solve a problem at the image's borders. Without it, the pixels right at the edge wouldn't get the same level of attention as the ones in the middle. Padding fixes this by adding a border of extra pixels (usually all zeros) around the image. This ensures the kernel can slide cleanly over every single pixel, from the center right out to the corners.

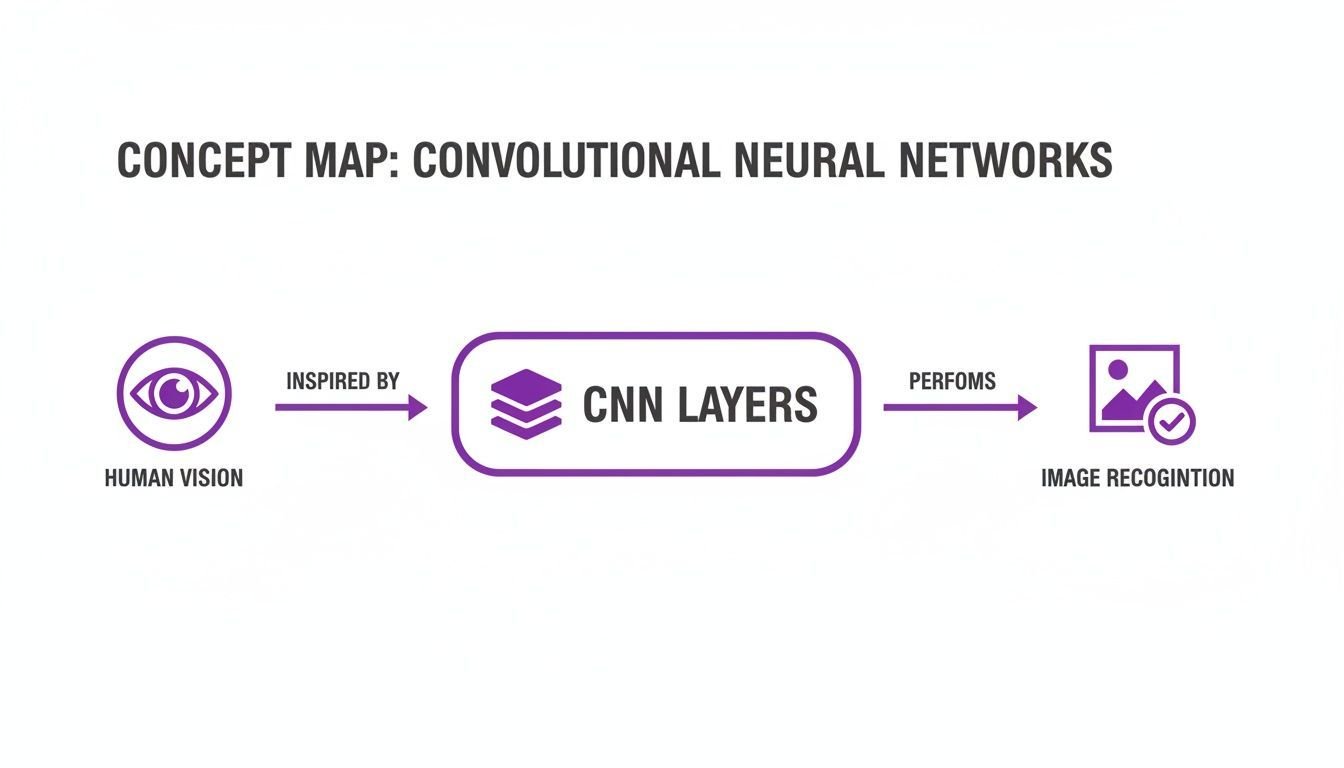

This whole process is inspired by how our own visual cortex works, building up an understanding of the world through layers of processing.

As you can see, a CNN's layered design is all about taking raw pixel data and gradually turning it into a high-level concept, like "cat" or "car."

Filtering and Summarizing the Results

Once a convolution has produced a feature map, two more crucial steps take place: activation and pooling.

An activation function is like a gatekeeper that decides which features are actually important. A popular choice is ReLU (Rectified Linear Unit), which introduces non-linearity into the network. It looks at the feature map and simply changes all the negative values to zero. In plain English, it’s saying, "If you didn't find the feature with much confidence, we're going to ignore it."

Finally, the pooling (or subsampling) layer steps in to summarize the findings. The most common method, max pooling, looks at small windows of the feature map (say, a 2x2 pixel area) and keeps only the single highest value.

Think of it like summarizing a dense report by only keeping the most important headline from each page. Pooling shrinks the data, which makes the network run faster, and it also makes the model less sensitive to the exact location of a feature.

These components—convolution, activation, and pooling—are bundled together to form a single "convolutional layer." A real-world CNN is made of many of these layers stacked on top of each other. The first few layers learn to spot simple things like edges and colors. Their feature maps are then passed to deeper layers, which learn to combine those simple patterns into more complex concepts like an eye, a nose, or a tire, until the network can recognize the entire object.

How a CNN Learns From Features to Understanding

So, we have all these building blocks—convolution, activation, and pooling. The real intelligence of a CNN comes from how it strings them together. The network doesn't just see a picture; it builds an understanding from the ground up, starting with simple lines and graduating to complex objects like a person’s face.

The process begins in the early convolutional layers. These create the initial feature maps by scanning for the most basic visual ingredients. One map might activate for horizontal edges, while another fires up wherever it finds a certain shade of blue. Think of them as a team of specialists, each trained to spot one specific, tiny clue.

Those first-level feature maps, full of raw patterns, are then passed on to the next set of layers. This is where things get interesting. Deeper layers run their own convolutions on the output of the earlier layers, combining simple features into more sophisticated concepts. A new layer might learn that a curved line above a straight one often forms part of an ear, or that two bright circles close together represent eyes. This stacking effect allows the network to construct a rich, hierarchical model of the image.

Guiding the Learning Process

But how does a network figure out that "pointy ears" and "whiskers" are important for identifying a cat, but not a car? It all comes down to the training process, which is essentially a guided feedback loop of trial and error.

The cycle looks something like this:

Prediction: The network takes an input image and makes a guess—for example, it might predict "dog" with 85% confidence and "cat" with 15%.

Scoring: We compare that guess to the correct label using a loss function. This function calculates a "loss score," which is just a number that measures how wrong the network was. A high score means a big miss.

Correction: This is where backpropagation kicks in. It's a clever algorithm that works its way backward from the loss score, sending a correction signal all the way back to the first layer. It tells each kernel exactly how it should adjust its values to be a little less wrong next time.

Backpropagation is the engine of learning. It’s what teaches the kernels what to look for. If kernels that detect pointy ears and whiskers consistently help produce a correct "cat" prediction, backpropagation reinforces their importance, making them stronger.

Preventing Memorization with Dropout

One of the biggest challenges in training is preventing the network from simply memorizing the training images. If it does, it will be useless on new, unseen data. To combat this, we use a regularization technique called dropout.

During training, dropout randomly "switches off" a certain percentage of neurons in a layer for each new image it sees. This simple trick forces the network to develop redundant pathways for learning features, stopping it from becoming too dependent on any single neuron.

It’s like training a team where, on any given day, a few members might call in sick. The rest of the team has to learn how to solve the case anyway, making everyone more capable and the entire group more resilient. This ensures the CNN generalizes its knowledge instead of just cheating on the test.

Famous CNN Architectures and Their Impact

Understanding the individual components of a CNN is one thing, but seeing how they’re assembled into landmark architectures is where the magic really happens. These aren't just abstract blueprints; they are the titans that solved monumental challenges and set the stage for modern computer vision.

The story really gets going with LeNet-5 back in the 1990s. Often called the "grandfather" of modern CNNs, it was created for a very practical purpose: reading handwritten numbers on bank checks. For its time, it was incredibly successful and established the core pattern we still see today—a sequence of convolution and pooling layers.

But the field’s true “big bang” moment was in 2012. That’s when AlexNet entered the famous ImageNet competition and didn't just win; it completely demolished the competition. By drastically lowering the error rate, it proved that very deep networks, trained on powerful GPUs, could tackle enormous datasets. This win single-handedly kicked off the deep learning craze.

The Race for Depth and Efficiency

After AlexNet, a key debate emerged among researchers: what’s the best way to build a better network? Do you just make it deeper, or do you make it smarter?

VGGNet was the champion of the "deeper is better" camp. Its design philosophy was straightforward—stack lots of small 3x3 convolutional filters on top of each other. The result was a very deep, powerful network that showed just how effective sheer depth could be, though it came with a hefty computational price tag.

GoogLeNet, also known as Inception, took the "work smarter, not harder" route. Instead of just stacking layers, it introduced the "Inception module." This clever block ran multiple different convolutions at the same time and merged their outputs, allowing the network to capture features at different scales without getting bogged down by too many parameters.

Believe it or not, the inspiration for CNNs comes from neuroscience. Discoveries in the 1950s and '60s about how the brain’s visual cortex uses simple and complex cells to see edges and shapes laid the conceptual groundwork. The first real-world application of this was LeNet, developed in 1989 to use backpropagation for recognizing handwritten digits. You can learn more about the early history and biological roots of CNNs.

Breaking the Depth Barrier with ResNet

As networks got deeper, a frustrating problem kept cropping up: the "vanishing gradient." The signal used for learning would get weaker and weaker as it traveled backward through the layers, eventually becoming so faint that the network would stop learning altogether.

ResNet, or Residual Network, introduced an elegant and powerful solution: "skip connections." These are essentially shortcuts that let the gradient signal bypass a few layers, giving it a clear path to flow back through the network.

This simple trick was a game-changer. It allowed researchers to build networks that were hundreds, or even thousands, of layers deep, pushing accuracy to levels previously thought impossible. ResNet's design is now a fundamental part of modern deep learning and a cornerstone of many top-performing models.

To put these advancements in perspective, it helps to see how each model built upon the last.

Landmark CNN Architectures Compared

This table provides a quick look at these influential models, highlighting what made each one special and the impact it had on the field.

Architecture	Year	Key Innovation	Impact
LeNet-5	1998	First widely-used CNN; basic Conv + Pool structure.	Proved CNNs could solve real-world problems like digit recognition.
AlexNet	2012	Deep architecture, ReLU activation, GPU training.	Kicked off the deep learning revolution by dominating the ImageNet competition.
VGGNet	2014	Extremely deep, uniform architecture using small 3x3 filters.	Showed that depth was a critical component for high performance.
GoogLeNet	2014	"Inception module" for multi-scale parallel processing.	Introduced computational efficiency, enabling powerful models on less hardware.
ResNet	2015	"Skip connections" to solve the vanishing gradient problem.	Enabled networks of unprecedented depth (100+ layers), setting new accuracy records.

From LeNet's practical start to ResNet's incredible depth, this evolution shows a clear pattern: each breakthrough addressed a specific limitation, allowing the next generation of models to become even more powerful.

Practical Applications of CNNs in 2026

It's easy to get lost in the theory of what are convolutional neural networks, but the real story is how they've quietly woven themselves into the fabric of our daily lives. CNNs are the unsung heroes behind countless technologies we interact with every day, often without a second thought. They've moved far beyond simple image sorting and are now performing tasks that are changing entire industries from the ground up.

Take your smartphone, for example. That facial recognition feature that unlocks your screen is a CNN at work, one that has learned the specific contours and features of your face. In the same vein, modern security systems rely on CNNs for object detection, whether it's flagging a trespasser on a video feed or spotting an unattended bag in a busy airport. These aren't just about classifying an image—they're about finding and identifying specific things within it.

Powering Critical Industries

Beyond everyday convenience, the influence of CNNs runs deep in specialized fields, where they tackle complex jobs with a level of speed and precision that humans simply can't match.

In medicine, CNNs are making huge waves in diagnostics, especially with a technique called semantic segmentation. When a radiologist looks at an MRI or CT scan, a CNN can trace the exact outline of a tumor, pixel by pixel. This gives doctors an incredibly clear picture of its size and location. The same principle allows self-driving cars to make sense of chaotic city streets by identifying and segmenting everything in their view—pedestrians, other vehicles, stop signs, and lane markings.

The performance gains have been staggering. Today's CNN models power over 90% of computer vision tasks across major industries.

In healthcare, they've been shown to improve cancer detection rates from mammograms by 10-20% compared to traditional analysis.

On social media, they perform trillions of image classifications daily with over 98% precision, from tagging friends to filtering content.

You can get a better sense of this rapid progress by exploring the historical impact and performance of CNNs and seeing just how far we've come. This ability to break down and understand visual information is what makes them so versatile.

The Engine Behind Generative AI

Perhaps the most talked-about application of CNNs right now is their central role in generative AI. They form the architectural backbone of the models that create stunningly realistic AI art, video, and even interactive experiences, like those seen on sophisticated AI-driven adult-content platforms.

These generative models typically pit two CNNs against each other:

A generator network acts like an artist, using convolutional layers to build a detailed image from a starting point of random noise.

A discriminator network acts as the critic. It inspects the generated image and provides feedback, pushing the generator to refine its work and produce more believable results.

This back-and-forth between creating and critiquing is the magic that allows generative models to produce such lifelike media. A CNN's natural talent for understanding visual structure makes it the perfect tool for both constructing images and judging their quality.

From securing our homes and cars to driving medical breakthroughs and fueling the next generation of digital content, CNNs are a practical, powerful, and essential part of our technological world.

A Few Common Questions About CNNs

As you get more familiar with convolutional neural networks, you'll naturally run into a few questions. Let's tackle some of the most common ones to help sharpen your understanding of what convolutional neural networks are and how they fit into the bigger picture of AI.

What's the Real Difference Between a CNN and a Regular Neural Network?

The main difference comes down to how they "see" data, especially something with a clear structure like an image. A regular neural network gets a picture and immediately flattens it into one long, single-file line of pixels. It's like taking a book and reading all the words one by one without any sentences or paragraphs—you lose all the context.

A CNN, on the other hand, is built from the ground up to respect that structure. It scans the image with its convolutional filters, looking for patterns in their original grid. This is a game-changer. It means the CNN inherently understands that pixels next to each other form meaningful things like edges, corners, and textures, making it a far more powerful tool for any visual task.

Are CNNs Just for Image Processing?

Not at all. While they earned their fame with images and video, CNNs are surprisingly flexible. They can work their magic on any data that has a grid-like or sequential structure.

1D CNNs: These are fantastic for analyzing data over time. Think of an audio file or a stream of sensor readings. A 1D CNN can slide along that timeline to spot patterns, making it perfect for speech recognition or detecting anomalies in financial data.

3D CNNs: These step up to handle data with volume. They're a huge deal in medicine, where they can analyze 3D medical scans like MRIs. Instead of looking at 2D slices one at a time, a 3D CNN can process the entire scan to find tumors or other issues by understanding their shape and structure in three dimensions.

This ability to recognize patterns in different dimensions is what makes CNNs such a versatile and powerful architecture.

The real power of a 3D CNN is its ability to see in, well, three dimensions. When analyzing video, it doesn't just see a series of static frames. It understands the movement between those frames, giving it a true grasp of actions and temporal context that a 2D model would completely miss.

How Are CNNs Connected to AI-Generated Content?

CNNs are the engine room for the models that generate everything from incredible AI art to interactive experiences. In architectures like Generative Adversarial Networks (GANs) or the more recent Diffusion Models, CNN-based networks have two very important jobs.

First, a "generator" network uses a series of convolutions to build up an image, starting from random noise and progressively adding detail to create a complex scene. It’s basically learning how to paint with features.

Second, another CNN acts as a critic. In a GAN, this is the "discriminator"; in a diffusion model, it's a "denoiser." This network's job is to analyze the generated image and provide feedback, pushing the generator to get more and more realistic. Because CNNs are so good at understanding visual grammar, they are the perfect tool for both creating and critiquing AI-generated media.
